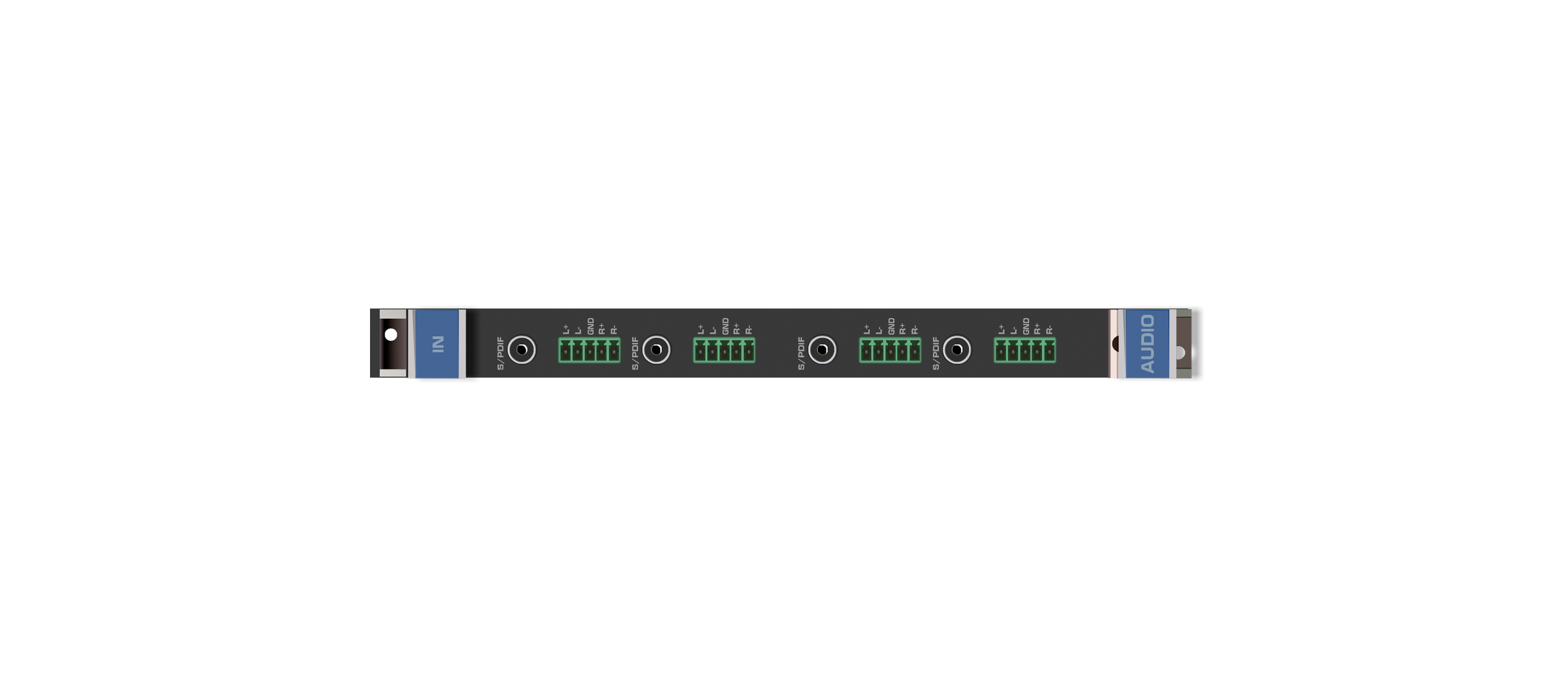

AAD−IN4−F32 is a four−channel analog and digital input card for the VS−3232 Series Modular Multi−Format Digital Matrix Switchers. The AAD−IN4−F32 inputs four analog and digital signals into the chassis
Balanced Analog Audio over Terminal Block Connector S/PDIF Digital Audio over RCA Connector
PORTS: 4 S/PDIF (digital audio) on RCA connectors, 4 balanced audio stereo (analog audio) on 5−pin terminal blocks
TOTAL BANDWIDTH: Analog (−3db): >100kHz, Digital: 32kHz − 192kHz sample frequency
POWER CONSUMPTION: 10W
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE: –40° to +70°C (–40° to 158°F)
HUMIDITY: 10% to 90%, RHL non−condensing
SAFETY REGULATORY COMPLIANCE: CE
ENVIRONMENTAL REGULATORY COMPLIANCE: Complies with appropriate requirements of RoHs and WEEE
